Music Practice Room Features

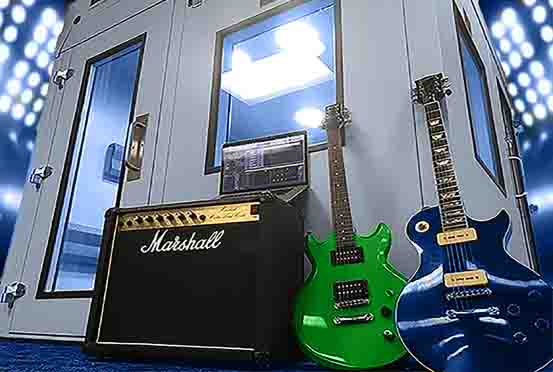

Eckel’s PRO Music Practice Room (MPR)s are the gold standard of music academies and the music industry. These premium quality, innovative MPRs offer a wide range of options designed for precise practice or recordings applications. The series is ideal for industry and schools. All models have a jack panel for greater versatility. Ideal for music practice and recording.
PRO Music Practice Room Spec Sheets
ADA PRO MPR 14-17 Spec Sheets
PRO MPR 13-17 Spec Sheets
PRO MPR Low Profile (LP) 13-17 Spec Sheets
PRO Music Practice Room Features
• 4” (100mm) Cam-Lock Panel System
• 32” (813mm) W x 73
• 3/4” (1873mm) H Door
• 24” (610mm) W x 762mm (30”)H Double Glazed Window
• Built in Attenuated Ventilation System
• Separate Switches for Internal Light and Fan with Speed Controllers
• Vibration Isolators
• Colour: Standard Eckel White, Luxury White, Beige, Warm Grey, & etc.(Full Range of colours are available)
• Fully Demountable
• Supplied Flat Pack (easily installed onsite)
• Wide Range of Models
• Low profile options are available for all models
• Pre-wired Plug and Play Electrics
PRO Music Practice Room Performance
| ROOM MODEL | OCTAVE BAND FREQUENCY (HZ) | ||||||
| 125 | 250 | 500 | 1K | 2K | 4K | NIC | |
| NOISE REDUCTION (dB) | |||||||
| PRO MPR | 24 | 32 | 44 | 53 | 58 | 61 | 45 |
PRO Music Practice Room Absorption Coefficient Data
| Frequency (Hz) | 125 | 250 | 500 | 1000 | 2000 | 4000 | NRC |
| Sound Absorption | 0.71 | 1.14 | 1.16 | 1.06 | 1.04 | 1.13 | .96 |
PRO Music Practice Rooms
Ideal for education, libraries and private studios. The smaller models have an inlet attenuator in the rear wall and an attenuated exhaust integrated in the ceiling. In the larger models, both attenuators are in the ceiling panels. All models have a jack panel for greater versatility. The wall panels are mounted on the MPR floor which in turn rests on “air cushion” vibration isolator rails. Ideal for music practice, reading rooms and private studios.
Wall & Ceiling Construction
Wall panels are 4” (100mm) and fabricated of galvanized solid steel outer surface and perforated steel inner surface. Ceiling panels include an integrated attenuated ventilation system and 6” (150mm) thick with galvanized solid steel outer surface and perforated steel inner surface. Acoustic insulation is dependent on panels and designed to provide independently tested transmission loss of selected panel system.
Isolated Floor Construction
Floor panels are available in 2”, 3” and 4” (51mm, 76mm, 102mm) thick fabricated from galvanized steel outer and inner (walking) surfaces. The floor panels are supplied with heavy duty framing members and inner surface to support consistent use for artists requiring wheelchair accessibility or other accommodation. Acoustic insulation is consistent with that of the wall and ceiling panels. All floors are installed on isolation mounts to protect against structure borne noise sources. Overall step up height is approximately 7” (175mm) from outside.
Doors
Standard door clear openings are 32” (810mm) W x 73 ¾” (960mm) H. The doors are designed to provide similar acoustic performance as the walls and to sit flush when installed. Hardware consists of chrome plated hinges with a cam rise mechanism to ensure both proper seating of the door and ease of closing. A 1” (25mm) door pull handle is used, assuring ease of operation and ADA compliance. Door windows from small to full size are available as an option. Alternate door sizes can be accommodated.
Observation Window
Observation windows are provided, typical nominal size 24” (610mm) W x 30” (750mm) H, fabricated from two layers of laminated safety glass set in an extruded PVC window frame. Alternate sizes are available to suit specific needs.
Jack Panels
Jack panels are installed on all rooms and suites both single and double wall. Standard jack panels are supplied with twelve .25” (6mm) phone jacks, two USB connections and one 1” (25mm) diameter pass-thru. Non-standard configurations are available to suit unique or specific jack requirements.
CSA Approved Electrical
All rooms are supplied with CSA approved, pre-wired 120 volts re- cessed internal electrical, including internal and external facing recessed duplex receptacles. Power is supplied via a power cord connected to the customer’s 120 volt source or may be hard wired upon request. Country specific electric and cord configurations are available for international customers (240v option also available).
Ceiling Integrated Ventilation Systems
The attenuated ventilation system consists of factory installed extract air fans and a passive intake air flow. The fans are quiet, low power consumption, fans. For studios wanting to connect to their existing HVAC system optional vent collars are available.
Paint Finish
Standard finish is textured poly – urethane enamel in Eckel White, Luxury White, Beige or Warm Grey; other colours available on request.
