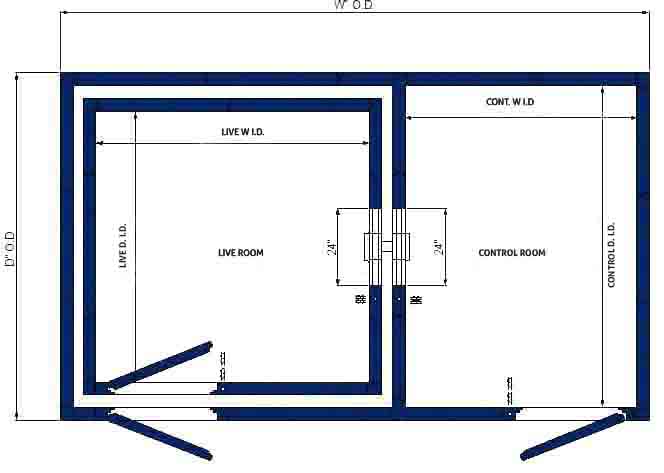

Double Wall Live
Single Wall Control
Studio Spec Sheet

Studio Model	Outside Dimensions Width x Depth x Height	Inside Dimensions Width x Depth x Height	Floor Area sq ft / sq m
ADV Studio-121	14’6” x 8’0” x 8’5” 2261 x 2565 x 2565mm		116.0 sq ft 10.78 sq m
	S-121 Control Room	5’6” x 7’4” x 7’2” 1676 x 2235 x 2184mm
	S-121 Exam Room	6’8” x 6’0” x 6’6” 2032 x 1829 x 1981mm
ADV Studio-122	16’4” x 8’11” x 8’5” 4978 x 2718 x 2565mm		145.6 sq ft 13.53 sq m
	S-122 Control Room	6’5” x 8’3” x 7’2” 1956 x 2515 x 2184mm
	S-122 Exam Room	7’7” x 6’11” x 6’6” 2311 x 2108 x 1981mm
ADV Studio-123	18’2” x 9’10” x 8’5” 5537 x 2997 x 2565mm		178.6 sq ft 16.59 sq m
	S-123 Control Room	7’4” x 9’2” x 7’2”2235 x 2794 x 2184mm
	S-123 Exam Room	8’6” x 7’10” x 6’6” 2591 x 2388 x 1981mm
ADV Studio-124	20’0” x 10’9” x 8’5” 6096 x 3277 x 2565mm		215.0 sq ft 19.97 sq m
	S-124 Control Room	8’3” x 10’1” x 7’2” 2515 x 3073 x 2184mm
	S-124 Exam Room	9’5” x 8’9” x 6’6” 2870 x 2667 x 1981mm

Performance

Octave Band Frequency (Hz)
	125	250	500	1K	2K	4K	NIC
Noise Reduction (dB)
Studio Model
C-Series ADV Single Wall Studio	31	44	57	63	68	67	51
C-Series ADV Double Wall Studio	44	58	75	86	91	95	67

Options

Window in Door 20″ x 60″ (508mm x 1524mm)
